Toyota Engine Bank & Cylinder Identification Laser Engraved Card

Stop guessing cylinder locations.

These precision laser-engraved stainless steel cards clearly display engine bank identification, cylinder numbering layout, and Air Fuel / Oxygen sensor positions for popular Toyota engines — all in one compact reference you can keep in your toolbox, glove box, or pocket.

Perfect for technicians, DIY mechanics, and Toyota enthusiasts who want quick, accurate reference information at a glance.

✔ Engines Covered

• 1UR-FE

• 3UR-FE

• 2UZ-FE

• 2GR-FE

• 1MZ-FE

• 3MZ-FE

• 5VZ-FE

• 2JZ-GE

• 1AZ-FE

• 1ZZ-FE

• 2AZ-FE

🔧 What’s Shown on Each Card

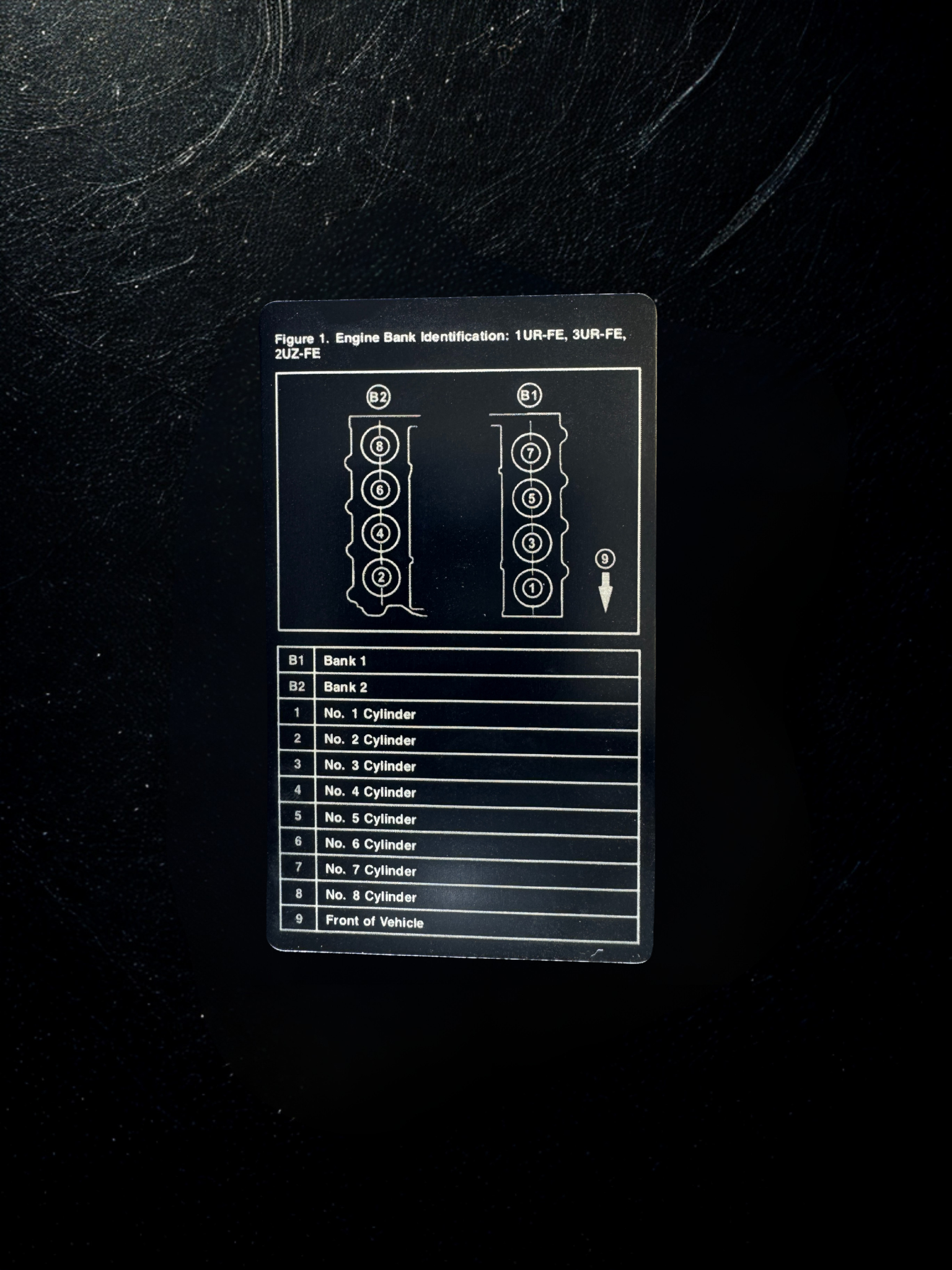

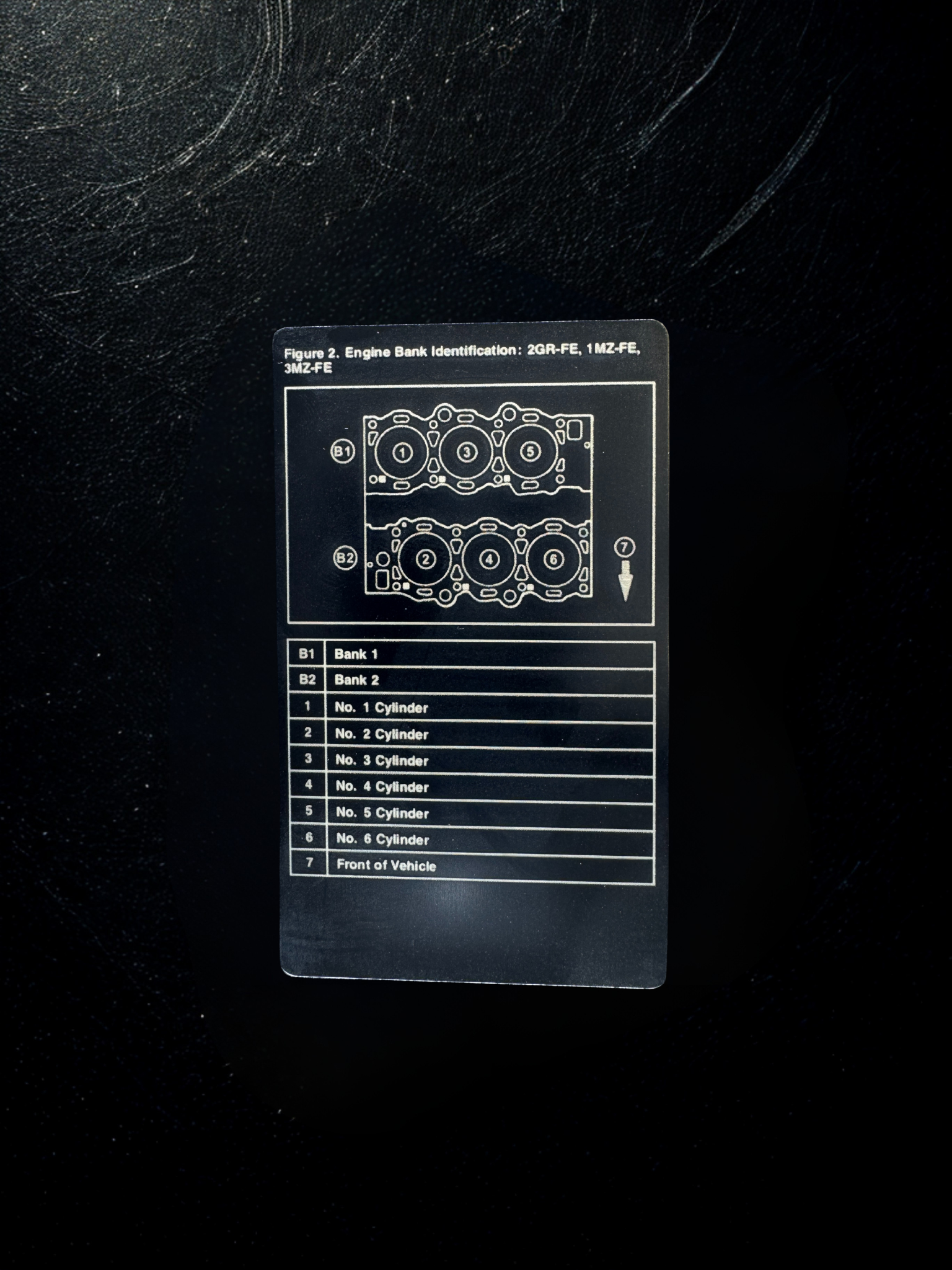

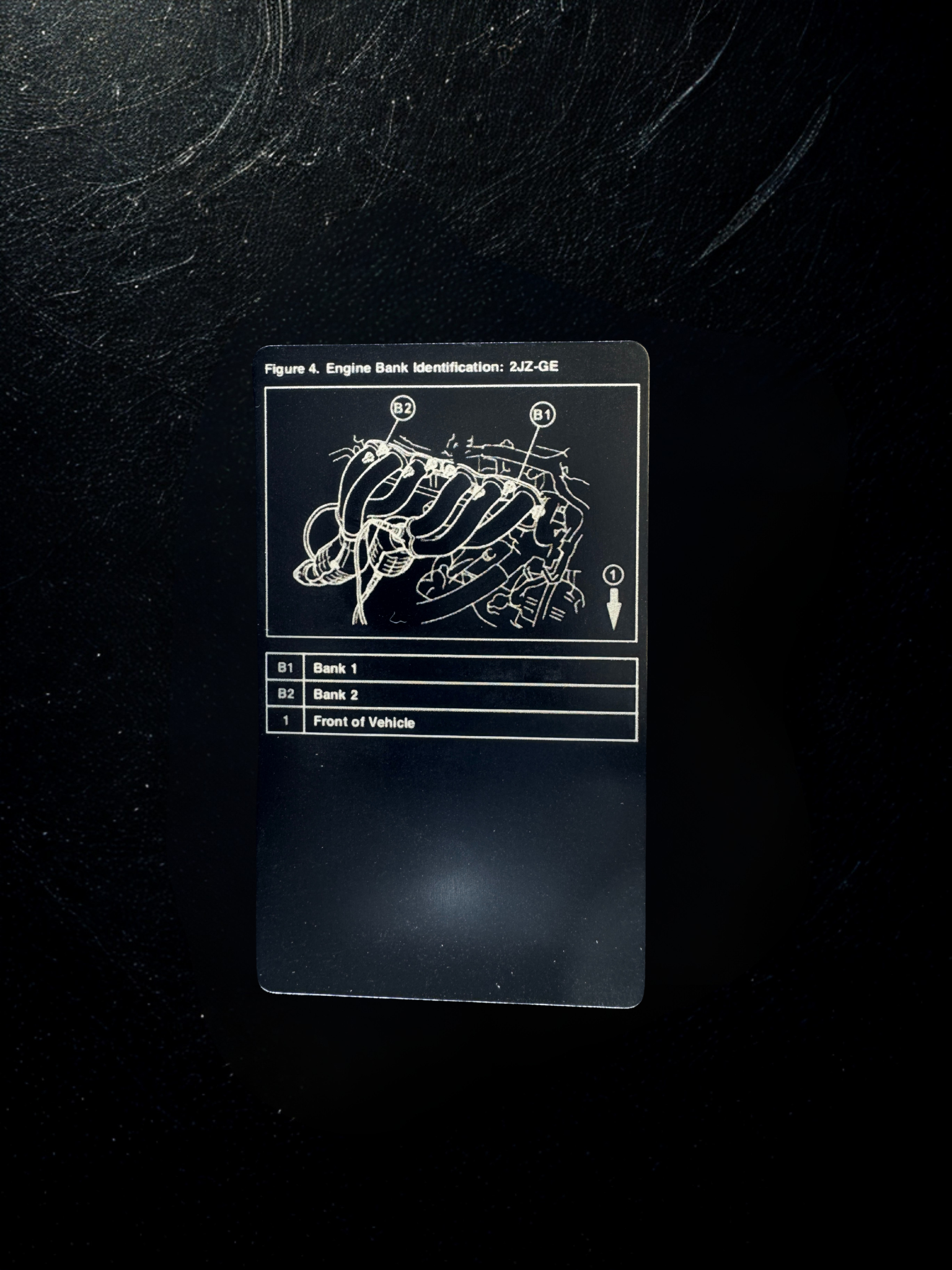

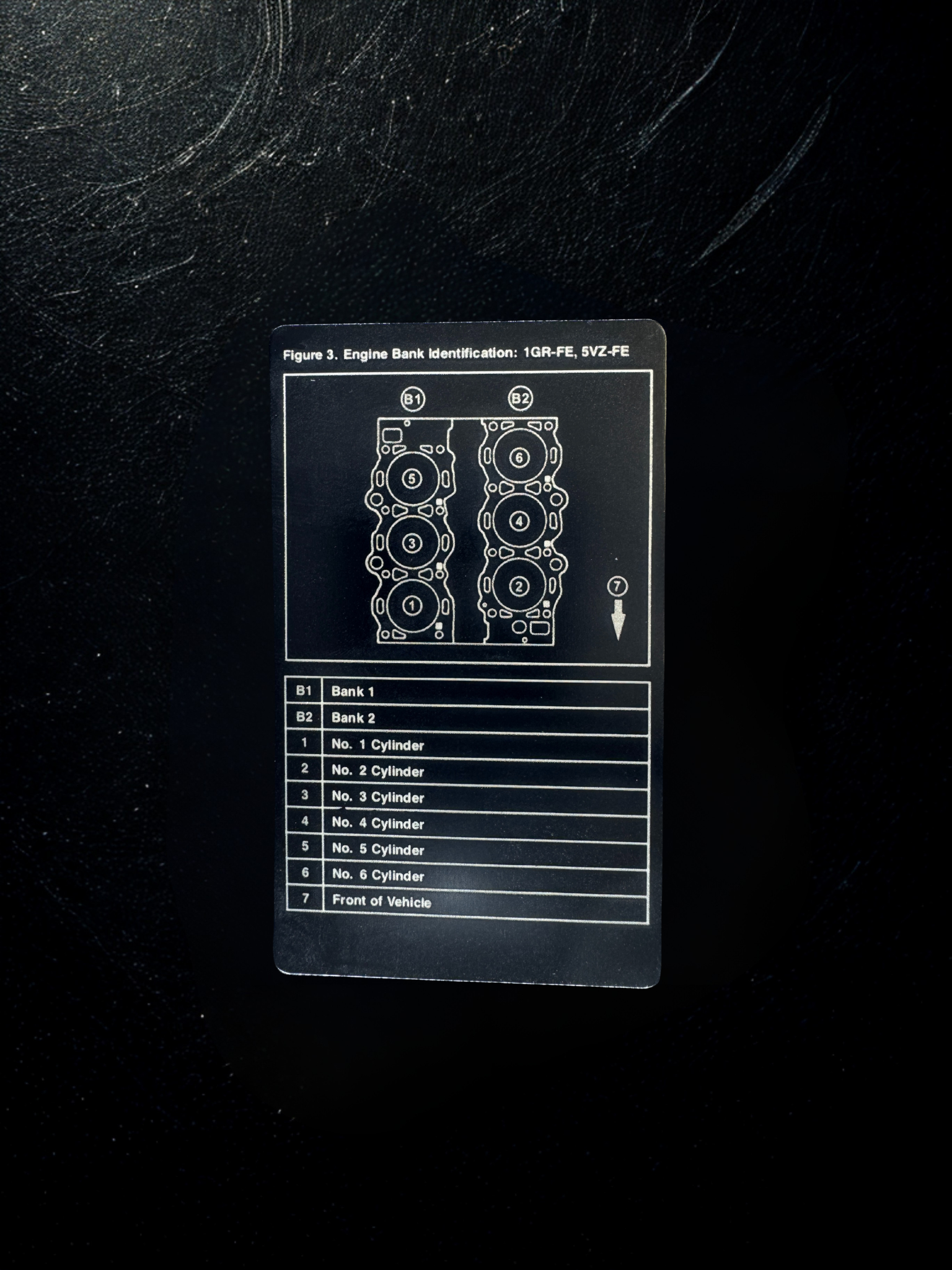

• Engine bank identification (Bank 1 / Bank 2 orientation)

• Cylinder number position layout

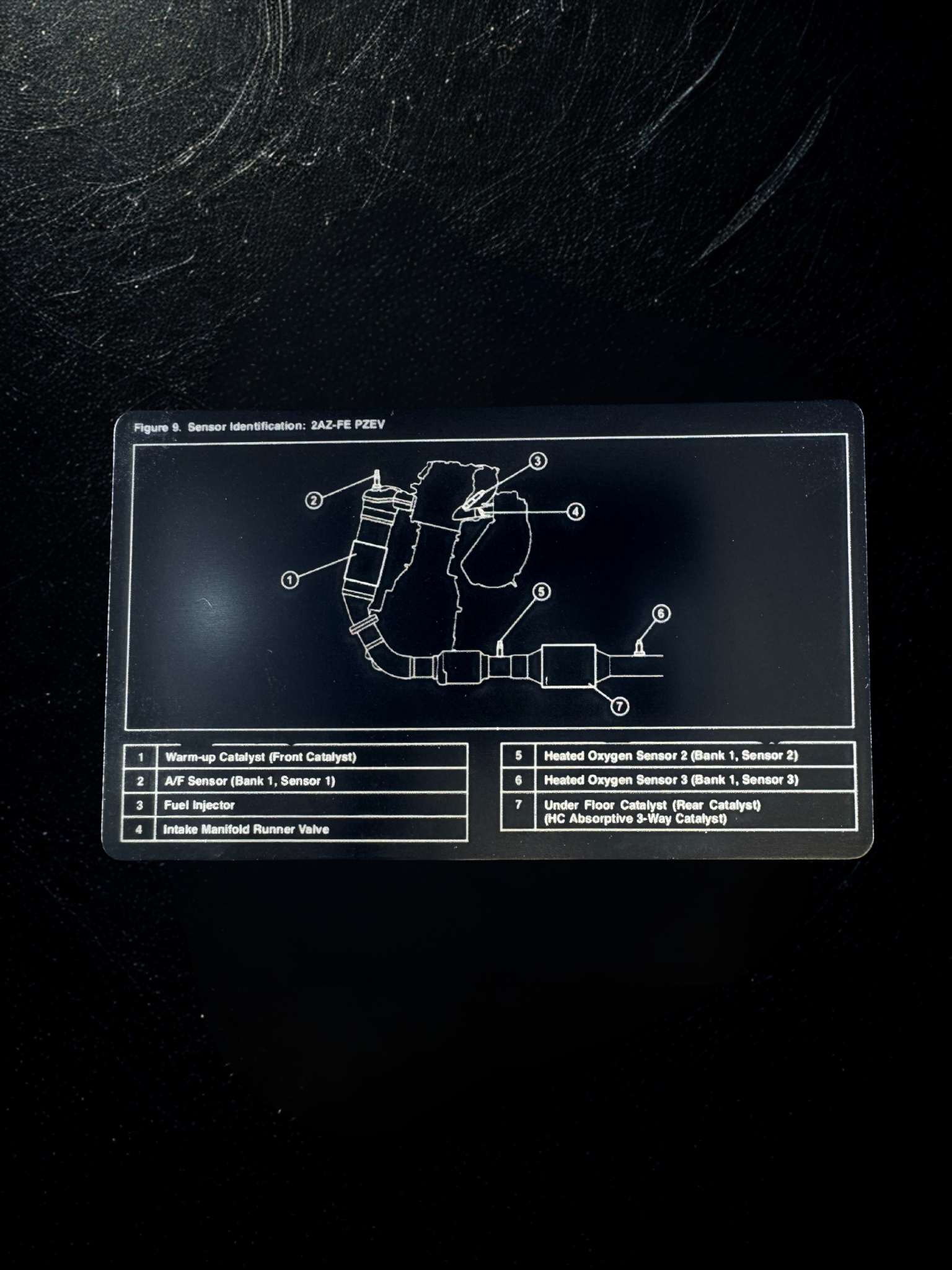

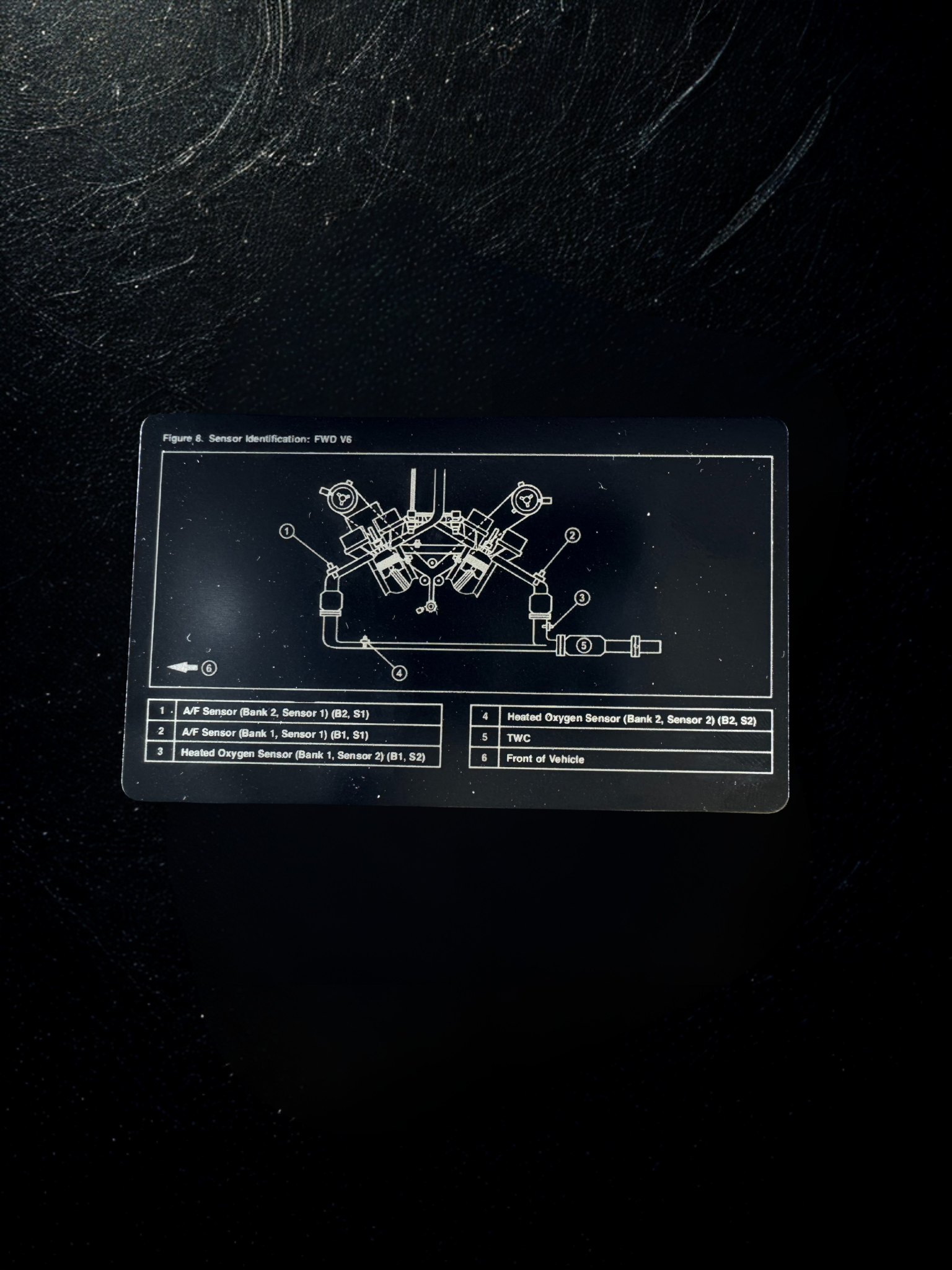

• Air Fuel Sensor (A/F) locations

• Oxygen Sensor (O2) locations

Reference based on Toyota TSB-0398-09 drawings. No more second-guessing during diagnostics, misfire tracing, or sensor replacement.

🛠 Product Details

Size: 100mm x 60mm

Material: Matte black coated stainless steel
